Create any unstructured grid type


Application:Groundwater Flow Modeling
Method:Finite Volume
Model Type:3D
Developer:U.S. Geological Survey


GMS provides a custom interface to the MODFLOW-USG model offering a simple way to set model parameters and a graphical user interface to run the model and visualize the results. Gather background data from a variety of sources from GIS to CAD and access online data from numerous databases of maps, images, and elevation data. GMS allows you to interact with models in true 3D taking advantage of optimized OpenGL graphics and to create photo-realistic renderings and animations for PowerPoint, print, and web presentations. GMS is the only MODFLOW-USG interface that supports any unstructured grid type including nested grids and grids based on triangles, rectangles, hexagons, and other cell shapes.

Try GMS Free for 14 Days   >Purchase GMS with MODFLOW-USG   >


MODFLOW-USG Description:
MODFLOW-USG offers the ability to create unstructured grids in order to increase model resolution around features such as rivers and wells. By varying the resolution in a groundwater model, more detailed information may be represented in areas that matter most resulting in more accurate models with quicker runtimes.

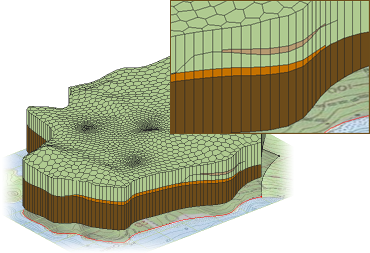

Unstructured grid types include quadtree (nested grids), voronoi (variably sized polygon), and tri-quad (triangle and quadrilateral) grids.

MODFLOW-USG Package Description
GNC Ghost Node Correction
CLN Process Connected Linear Network
BCT Block Centered Transport
DDF Density Dependent Flow
DPT Dual Porosity Transport
PCB Prescribed Concentration Boundary
TVM Time-variant Materials (MODFLOW-USG Transport)
